DiffBot with Chained Controllers

This example shows how to create chained controllers using diff_drive_controller and pid_controllers to control a differential drive robot. It extends example_2. If you haven’t already, you can find the instructions for example_2 in DiffBot. It is recommended to follow the steps given in that tutorial first before proceeding with this one.

This example demonstrates controller chaining as described in Controller Chaining / Cascade Control. The control chain flows from the diff_drive_controller through two PID controllers to the DiffBot hardware. The diff_drive_controller converts desired robot twist into wheel velocity commands, which are then processed by the PID controllers to directly control the wheel velocities. Additionally, this example shows how to enable the feedforward mode for the PID controllers.

Furthermore, this example shows how to use plotjuggler to visualize the controller states.

The DiffBot URDF files can be found in description/urdf folder.

Note

The commands below are given for a local installation of this repository and its dependencies as well as for running them from a docker container. For more information on the docker usage see Using Docker.

Tutorial steps

To start DiffBot example open a terminal, source your ROS2-workspace and execute its launch file with
```
ros2 launch ros2_control_demo_example_16 diffbot.launch.py
```

The launch file loads and starts the robot hardware, controllers and opens RViz. In the starting terminal you will see a lot of output from the hardware implementation showing its internal states. This excessive printing is only added for demonstration. In general, printing to the terminal should be avoided as much as possible in a hardware interface implementation.

If you can see an orange box in RViz everything has started properly. Let’s introspect the control system before moving DiffBot.

Check controllers
```
ros2 control list_controllers
```

You should get

joint_state_broadcaster          joint_state_broadcaster/JointStateBroadcaster  active
diffbot_base_controller          diff_drive_controller/DiffDriveController      active
pid_controller_right_wheel_joint pid_controller/PidController                   active
pid_controller_left_wheel_joint  pid_controller/PidController                   active

Check the hardware interface loaded by opening another terminal and executing
```
ros2 control list_hardware_interfaces
```

You should get
command interfaces
  diffbot_base_controller/angular/velocity [unavailable] [unclaimed]
  diffbot_base_controller/linear/velocity [unavailable] [unclaimed]
  left_wheel_joint/velocity [available] [claimed]
  pid_controller_left_wheel_joint/left_wheel_joint/velocity [available] [unclaimed]
  pid_controller_right_wheel_joint/right_wheel_joint/velocity [available] [unclaimed]
  right_wheel_joint/velocity [available] [claimed]
state interfaces
  left_wheel_joint/position
  left_wheel_joint/velocity
  pid_controller_left_wheel_joint/left_wheel_joint/velocity
  pid_controller_right_wheel_joint/right_wheel_joint/velocity
  right_wheel_joint/position
  right_wheel_joint/velocity
The [claimed] marker on command interfaces means that a controller has access to command DiffBot. There are two [claimed] interfaces from pid_controller, one for left wheel and one for right wheel. These interfaces are referenced by diff_drive_controller. By referencing them, diff_drive_controller can send commands to these interfaces. If you see these, we’ve successfully chained the controllers.

There are also two [unclaimed] interfaces from diff_drive_controller, one for angular velocity and one for linear velocity. These are provided by the diff_drive_controller because it is chainable. You can ignore them since we don’t use them in this example.

We specified feedforward_gain as part of gains in diffbot_chained_controllers.yaml. To actually enable feedforward mode for the pid_controller, we need to use a service provided by pid_controller. Let’s enable it.

ros2 service call /pid_controller_left_wheel_joint/set_feedforward_control std_srvs/srv/SetBool "data: true" && \
ros2 service call /pid_controller_right_wheel_joint/set_feedforward_control std_srvs/srv/SetBool "data: true"

You should get

response:
std_srvs.srv.SetBool_Response(success=True, message='')

To see the pid_controller in action, let’s subscribe to the controler_state topic, e.g. pid_controller_left_wheel_joint/controller_state topic.

ros2 topic echo /pid_controller_left_wheel_joint/controller_state

Now we are ready to send a command to move the robot. Send a command to Diff Drive Controller by opening another terminal and executing

ros2 topic pub --rate 10 /cmd_vel geometry_msgs/msg/TwistStamped "
twist:
  linear:
    x: 0.7
    y: 0.0
    z: 0.0
  angular:
    x: 0.0
    y: 0.0
    z: 1.0"

You should now see robot is moving in circles in RViz.

In the terminal where launch file is started, you should see the commands being sent to the wheels and how they are gradually stabilizing to the target velocity similar to following output.

[ros2_control_node-1] [WARN] [1739860498.298085087] [diffbot_base_controller]: Received TwistStamped with zero timestamp, setting it to current time, this message will only be shown once
[ros2_control_node-1] [INFO] [1739860498.634431841] [controller_manager.resource_manager.hardware_component.system.DiffBot]: Reading states:
[ros2_control_node-1]        position 5.78 and velocity 27.52 for 'right_wheel_joint/position'!
[ros2_control_node-1]        position 5.23 and velocity 24.90 for 'left_wheel_joint/position'!
[ros2_control_node-1] [INFO] [1739860498.634800954] [controller_manager.resource_manager.hardware_component.system.DiffBot]: Writing commands:
[ros2_control_node-1]       command 35.55 for 'right_wheel_joint/velocity'!
[ros2_control_node-1]       command 32.16 for 'left_wheel_joint/velocity'!
[ros2_control_node-1] [INFO] [1739860499.234393780] [controller_manager.resource_manager.hardware_component.system.DiffBot]: Reading states:
[ros2_control_node-1]        position 36.99 and velocity 60.61 for 'right_wheel_joint/position'!
[ros2_control_node-1]        position 33.19 and velocity 53.17 for 'left_wheel_joint/position'!
[ros2_control_node-1] [INFO] [1739860499.234812092] [controller_manager.resource_manager.hardware_component.system.DiffBot]: Writing commands:
[ros2_control_node-1]       command 60.53 for 'right_wheel_joint/velocity'!
[ros2_control_node-1]       command 52.27 for 'left_wheel_joint/velocity'!

Let’s go back to the terminal where we subscribed to the controller_state topic and see the changing states.

---
header:
  stamp:
    sec: 1739860821
    nanosec: 314185285
  frame_id: ''
dof_states:
- name: left_wheel_joint
  reference: 18.967273133333336
  feedback: 13.294059091678035
  feedback_dot: 0.0
  error: 5.673214041655301
  error_dot: 0.0
  time_step: 0.100077098
  output: 24.857442270936623
---
header:
  stamp:
    sec: 1739860821
    nanosec: 414126639
  frame_id: ''
dof_states:
- name: left_wheel_joint
  reference: 25.296198783333335
  feedback: 19.8859538167493
  feedback_dot: 0.0
  error: 5.410244966584035
  error_dot: 0.0
  time_step: 0.099941354
  output: 32.090205119481226

Visualize the convergence of DiffBot’s wheel velocities and commands

In the section below, we will use plotjuggler to observe the convergence of DiffBot’s wheel velocities and commands from PID controllers.

plotjuggler is an open-source data visualization tool and widely embraced by ROS2 community. If you don’t have it installed, you can find the instructions from plotjuggler website.

Before we proceed, we stop all previous steps from terminal and start from the beginning.

To start DiffBot example open a terminal, source your ROS2-workspace and execute its launch file with
```
ros2 launch ros2_control_demo_example_16 diffbot.launch.py
```

Like before, if you can see an orange box in RViz, everything has started properly.

To start the plotjuggler with a provided layout file(plotjuggler.xml), open another terminal and run following command.

ros2 run plotjuggler plotjuggler --layout $(ros2 pkg prefix ros2_control_demo_example_16 --share)/config/plotjuggler.xml

After this, you will see a few dialogs popping up. For example:

Start the previously used streaming plugin?

ROS2 Topic Subscriber

Click ‘Yes’ for the first dialog and ‘OK” to the following two dialogs, then you will see the plotjuggler window.

To enable feedforward mode and published a command to move the robot, instead of doing these manually, we will use the demo_test.launch.py. Open another terminal and execute
```
ros2 launch ros2_control_demo_example_16 demo_test.launch.py
```

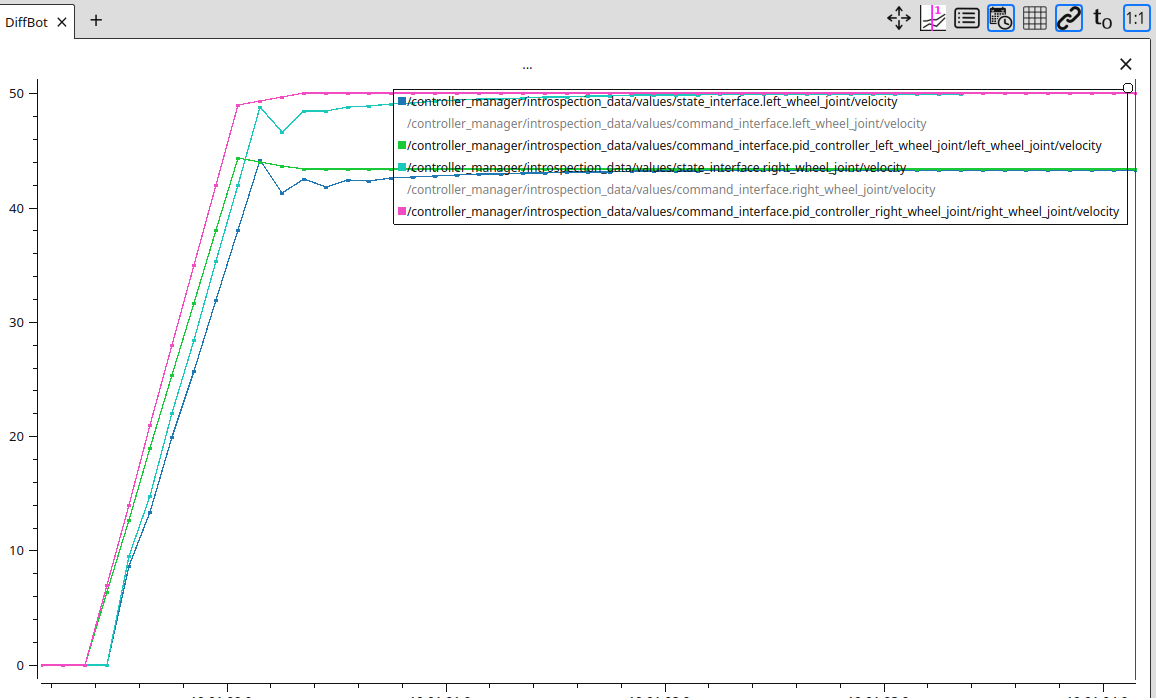

From the plotjuggler, you can see the controllers’ states and commands being plotted, similar to following figure. From the figure, the DiffBot’s wheel velocities and commands from PID controllers are converged to the target velocity fairly quickly.

Change the gains in the diffbot_chained_controllers.yaml file with some different values, repeat above steps and observe its effect to the pid_controller commands. For example, to change the feedforward_gain of the right wheel to 0.50, you can use the following command:
```
ros2 param set /pid_controller_right_wheel_joint gains.right_wheel_joint.feedforward_gain 0.50
```

Files used for this demo

Launch file: diffbot.launch.py
Controllers yaml: diffbot_chained_controllers.yaml
URDF file: diffbot.urdf.xacro
- Description: diffbot_description.urdf.xacro
- ros2_control tag: diffbot.ros2_control.xacro
RViz configuration: diffbot.rviz
Hardware interface plugin: diffbot_system.cpp
Demo helper utility:
- demo test helper node: demo_test_helper.py
- demo test launch file: demo_test.launch.py

Controllers from this demo

Joint State Broadcaster (ros2_controllers repository): doc
Diff Drive Controller (ros2_controllers repository): doc
pid_controller (ros2_controllers repository): doc
