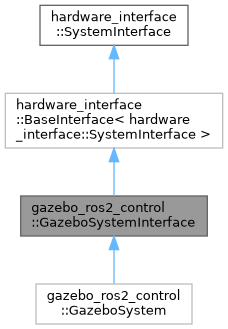

Inheritance diagram for gazebo_ros2_control::GazeboSystemInterface:

[legend]

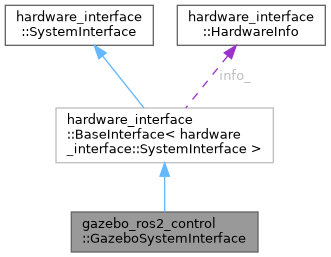

Collaboration diagram for gazebo_ros2_control::GazeboSystemInterface:

[legend]

Public Types
enum	ControlMethod_ { NONE = 0 , POSITION = (1 << 0) , VELOCITY = (1 << 1) , EFFORT = (1 << 2) }

typedef SafeEnum< enum ControlMethod_ >	ControlMethod

Public Member Functions
virtual bool	initSim (rclcpp::Node::SharedPtr &model_nh, gazebo::physics::ModelPtr parent_model, const hardware_interface::HardwareInfo &hardware_info, sdf::ElementPtr sdf)=0
	Initialize the system interface param[in] model_nh pointer to the ros2 node param[in] parent_model pointer to the model param[in] control_hardware vector filled with information about robot's control resources param[in] sdf pointer to the SDF.

Public Member Functions inherited from hardware_interface::BaseInterface< hardware_interface::SystemInterface >
return_type	configure (const HardwareInfo &info) override

return_type	configure_default (const HardwareInfo &info)

std::string	get_name () const final

status	get_status () const final

Public Member Functions inherited from hardware_interface::SystemInterface
virtual std::vector< StateInterface >	export_state_interfaces ()=0
	Exports all state interfaces for this system.

virtual std::vector< CommandInterface >	export_command_interfaces ()=0
	Exports all command interfaces for this system.

virtual return_type	prepare_command_mode_switch (const std::vector< std::string > &, const std::vector< std::string > &)
	Prepare for a new command interface switch.

virtual return_type	perform_command_mode_switch (const std::vector< std::string > &, const std::vector< std::string > &)

virtual return_type	start ()=0
	Start exchange data with the hardware.

virtual return_type	stop ()=0
	Stop exchange data with the hardware.

virtual return_type	read ()=0
	Read the current state values from the actuators and sensors within the system.

virtual return_type	write ()=0
	Write the current command values to the actuator within the system.

Protected Attributes
rclcpp::Node::SharedPtr	nh_

Protected Attributes inherited from hardware_interface::BaseInterface< hardware_interface::SystemInterface >
HardwareInfo	info_

status	status_

Member Function Documentation

◆ initSim()

virtual bool gazebo_ros2_control::GazeboSystemInterface::initSim	(	rclcpp::Node::SharedPtr &	model_nh,
		gazebo::physics::ModelPtr	parent_model,
		const hardware_interface::HardwareInfo &	hardware_info,
		sdf::ElementPtr	sdf
	)

pure virtual

Initialize the system interface param[in] model_nh pointer to the ros2 node param[in] parent_model pointer to the model param[in] control_hardware vector filled with information about robot's control resources param[in] sdf pointer to the SDF.

Implemented in gazebo_ros2_control::GazeboSystem.

The documentation for this class was generated from the following file:

gazebo_ros2_control/gazebo_ros2_control/include/gazebo_ros2_control/gazebo_system_interface.hpp
