Architecture

The integration provides two architecture variants.

No-CDR architecture

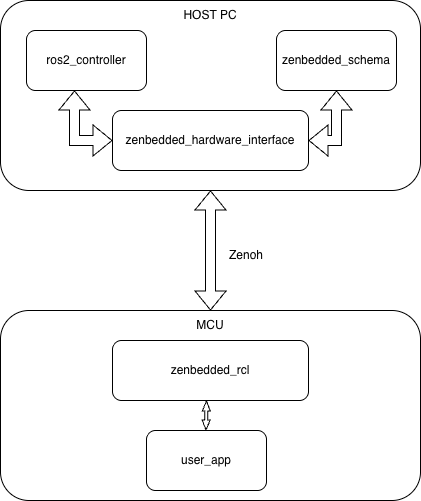

No-CDR architecture — uses zenbedded_transport, zenbedded_hardware_interface, and zenbedded_rcl with zero-copy packed binary over Zenoh

No intermediate serialization. zenbedded_transport defines the wire format, zenbedded_hardware_interface runs on the host, zenbedded_rcl runs on the MCU — all sharing the same packed struct layout.

CDR architecture

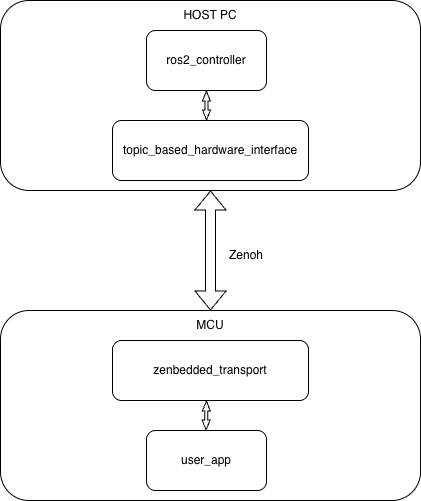

CDR architecture — uses topic_based_hardware_interface and zenbedded_transport with CDR serialization over Zenoh

Uses standard CDR serialization. topic_based_hardware_interface on the host communicates with zenbedded_transport on the MCU over Zenoh topics.

Package responsibilities

zenbedded_hardware_interface [stable]

A ros2_control SystemInterface that connects to remote MCUs over Zenoh. It reads sensor state from a Zenoh subscriber and writes joint commands to a Zenoh publisher. Configuration (endpoint, topics, interface schema) is done via ROS 2 parameters. Uses realtime_tools::RealtimeBuffer for lock-free state access.

zenbedded_transport [stable]

A YAML-driven schema parser and C/C++ header generator that produces packed binary struct descriptions. Both the hardware interface (host-side) and the firmware (MCU-side) use the same schema to ensure wire-format compatibility. Has no ROS dependencies – builds standalone or with colcon.

zenbedded_transport [WIP]

Zephyr module infrastructure for shared transport logic between the MCU and the ROS 2 host. Implements MicroCDR-style JointState and JointCommand serialization (the zcdr_* API in serialization.h). A zenoh_transport wrapper, shared .msg definitions, and ROS name-to-Zenoh resource key mapping are planned.

zenbedded_rcl [WIP]

An embedded client library for Zephyr RTOS that provides a high-level, ROS-like API for hardware components running on the MCU. The ZenbeddedClient (double-buffered state/command buffers with ABA-prevention versioning, Zenoh publish/subscribe, optional control thread) is implemented and ready for use. A HardwareComponent base class (lifecycle-managed sensor/actuator) and ComponentManager are planned but not yet implemented. Communicates directly with the host over Zenoh without any intermediate agent.
