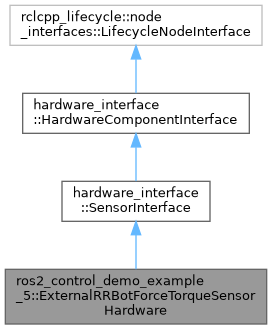

Inheritance diagram for ros2_control_demo_example_5::ExternalRRBotForceTorqueSensorHardware:

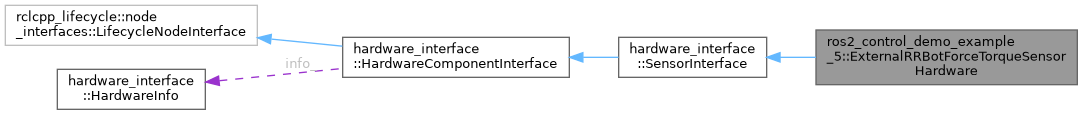

Collaboration diagram for ros2_control_demo_example_5::ExternalRRBotForceTorqueSensorHardware:

[legend]

Public Member Functions
	RCLCPP_SHARED_PTR_DEFINITIONS (ExternalRRBotForceTorqueSensorHardware)

hardware_interface::CallbackReturn	on_init (const hardware_interface::HardwareInfo &info) override
	Initialization of the hardware interface from data parsed from the robot's URDF. More...

std::vector< hardware_interface::StateInterface >	export_state_interfaces () override
	Exports all state interfaces for this hardware interface. More...

hardware_interface::CallbackReturn	on_activate (const rclcpp_lifecycle::State &previous_state) override

hardware_interface::CallbackReturn	on_deactivate (const rclcpp_lifecycle::State &previous_state) override

hardware_interface::return_type	read (const rclcpp::Time &time, const rclcpp::Duration &period) override
	Read the current state values from the actuator. More...

Public Member Functions inherited from hardware_interface::SensorInterface
	SensorInterface (const SensorInterface &other)=delete
	SensorInterface copy constructor is actively deleted. More...

	SensorInterface (SensorInterface &&other)=default

CallbackReturn	init (const HardwareInfo &hardware_info, rclcpp::Logger logger, rclcpp::node_interfaces::NodeClockInterface::SharedPtr clock_interface)

virtual void	import_state_interface_descriptions (const HardwareInfo &hardware_info)

virtual std::vector< hardware_interface::InterfaceDescription >	export_unlisted_state_interface_descriptions ()

virtual std::vector< StateInterface::ConstSharedPtr >	on_export_state_interfaces ()

virtual std::string	get_name () const
	Get name of the actuator hardware. More...

virtual std::string	get_group_name () const
	Get name of the actuator hardware group to which it belongs to. More...

const rclcpp_lifecycle::State &	get_lifecycle_state () const
	Get life-cycle state of the actuator hardware. More...

void	set_lifecycle_state (const rclcpp_lifecycle::State &new_state)
	Set life-cycle state of the actuator hardware. More...

void	set_state (const std::string &interface_name, const double &value)

double	get_state (const std::string &interface_name) const

rclcpp::Logger	get_logger () const
	Get the logger of the SensorInterface. More...

rclcpp::Clock::SharedPtr	get_clock () const
	Get the clock of the SensorInterface. More...

const HardwareInfo &	get_hardware_info () const
	Get the hardware info of the SensorInterface. More...

Additional Inherited Members
Protected Attributes inherited from hardware_interface::SensorInterface
HardwareInfo	info_

std::unordered_map< std::string, InterfaceDescription >	sensor_state_interfaces_

std::unordered_map< std::string, InterfaceDescription >	unlisted_state_interfaces_

std::vector< StateInterface::SharedPtr >	sensor_states_

std::vector< StateInterface::SharedPtr >	unlisted_states_

rclcpp_lifecycle::State	lifecycle_state_

Member Function Documentation

◆ export_state_interfaces()

std::vector< hardware_interface::StateInterface > ros2_control_demo_example_5::ExternalRRBotForceTorqueSensorHardware::export_state_interfaces ( )

overridevirtual

Exports all state interfaces for this hardware interface.

Old way of exporting the StateInterfaces. If a empty vector is returned then the on_export_state_interfaces() method is called. If a vector with StateInterfaces is returned then the exporting of the StateInterfaces is only done with this function and the ownership is transferred to the resource manager. The set_command(...), get_command(...), ..., can then not be used.

Note the ownership over the state interfaces is transferred to the caller.

Returns: vector of state interfaces

Reimplemented from hardware_interface::SensorInterface.

◆ on_init()

hardware_interface::CallbackReturn ros2_control_demo_example_5::ExternalRRBotForceTorqueSensorHardware::on_init ( const hardware_interface::HardwareInfo & hardware_info )

overridevirtual

Initialization of the hardware interface from data parsed from the robot's URDF.

Parameters

[in] hardware_info structure with data from URDF.

Returns: CallbackReturn::SUCCESS if required data are provided and can be parsed.; CallbackReturn::ERROR if any error happens or data are missing.

Reimplemented from hardware_interface::SensorInterface.

◆ read()

hardware_interface::return_type ros2_control_demo_example_5::ExternalRRBotForceTorqueSensorHardware::read	(	const rclcpp::Time &	time,
		const rclcpp::Duration &	period
	)

overridevirtual

Read the current state values from the actuator.

The data readings from the physical hardware has to be updated and reflected accordingly in the exported state interfaces. That is, the data pointed by the interfaces shall be updated.

Parameters

[in]	time	The time at the start of this control loop iteration
[in]	period	The measured time taken by the last control loop iteration

Returns: return_type::OK if the read was successful, return_type::ERROR otherwise.

Implements hardware_interface::SensorInterface.

The documentation for this class was generated from the following files:

ros2_control_demos/example_5/hardware/include/ros2_control_demo_example_5/external_rrbot_force_torque_sensor.hpp
ros2_control_demos/example_5/hardware/external_rrbot_force_torque_sensor.cpp
